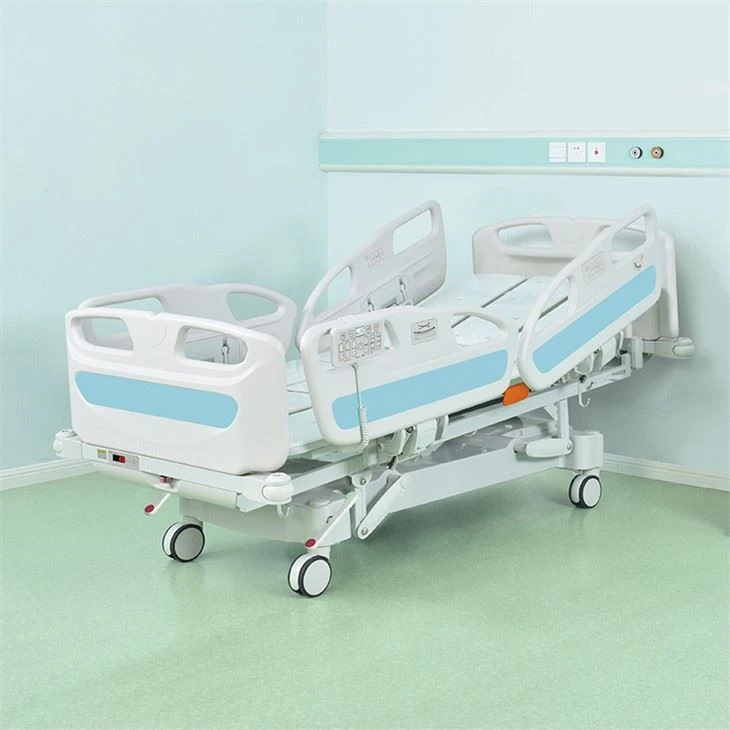

ICU Turning Bed with Weighing Scale
This is a special bed for bedridden patients. It helps the caregiver turn the patient through part bedboard left & right lateral tilting. The in-bed weighing scale system assists to weigh the weight of the patient.
Description
F868a-ch ICU Turning Bed with Weighing Scale
This is a special bed for bedridden patients. It helps the caregiver turn the patient through part bedboard left & right lateral tilting. The in-bed weighing scale system assists to weigh the weight of the patient.
Key Features
- In-bed weighing scale
- Four motor
- Part bedboard left/right lateral tilting
- 12-section mattress platform
- Central braking system
Standard Functions
- Back section up/down
- Knee section up/down
- Auto-contour
- Whole bed up/down
- Trendelenburg/Reverse Tren.
- Part bedboard lateral tilting
- Weighing scale
- Auto-regression

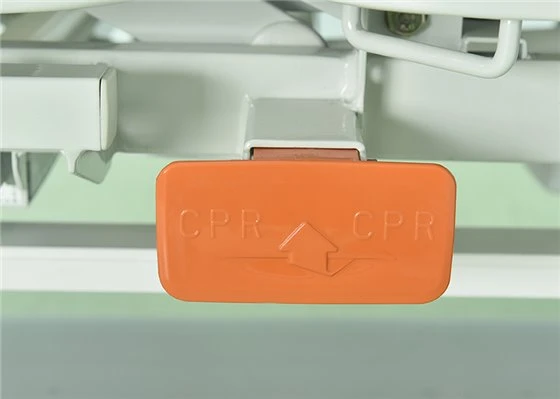

- Manual quick release CPR
- Electric CPR
- One button cardiac chair position
- One button trendelenburg
- Angle display
- Backup battery
- Built-in patient control
- Under bed light
Technical Data
Mattress platform size | (1960x850) ±10mm |
External size | (2190x995) ±10mm |
Height range | (590-820) ±10mm |
Back section angle | 0-72°±2° |
Knee section angle | 0-36°±2° |
Trendelenburg/Reverse Tren. angle | 0-13°±1° |
Lateral tilting angle | 0-31°±2° |
Castor diameter | 125mm |
Safe Working Load (SWL) | 250 kg |
Denmark LINAK actuator and electronic control system to ensure safety and stability of ICU bed.
Patients can be weighed through a weighing system which can also be set exit alarm (optional function).

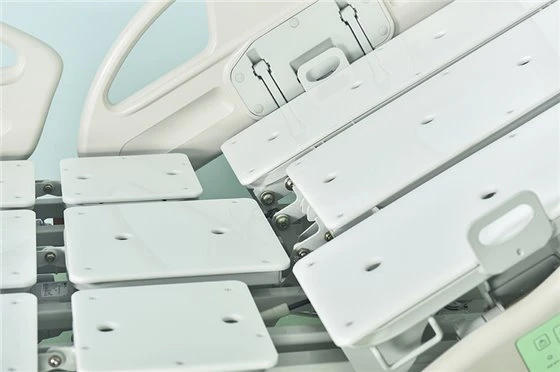

12-section PP mattress platform, designed for part bedboard left/right lateral tilting (turn over function); carved by the high grade precise engraving machine; with ventilating holes, curved corners and smooth surface, look perfect and easy clean.
Side rails are compliant to the EN 60601-2-52 international hospital bed standard and aid patients who are able to egress the bed independently.
Backrest auto-regression extends pelvic area and avoids friction and shear force on the back, so as to prevent the formation of bedsores.
LCD nurse master control with real-time data display enables functional operations with ease.
Single-hand side rail release with soft drop function, side rails are supported with gas springs to lower the side rails at a reduced speed to ensure the patient comfortable and undisturbed.
Four bumpers provide protection, with IV pole socket in the middle, also used to hang Oxygen cylinder holder and hold writing table.
Outside: Intuitive and easily accessible, functional lock-out enhances the safety; Inside: Specially designed button of under bed light is convenient for patient to use at night.
It's conveniently placed at two sides of bed (middle). Dual side pull handle helps bringing the backrest to a flat position.
Mattress retainers help to secure the mattress and prevent it from sliding and shifting.
Lifting pole holders are attached to the corner of bed head to provide support for lifting pole (optional).
LINAK rechargeable backup battery, reliable quality, durable and stable characteristic.
Self-designed 5" central locking castors, aircraft grade aluminum alloy frame, with self-lubricating bearing inside, enhance the safety and load bearing capacity, maintenance – free. The twin wheel castors provide smooth and optimal movement.
Optional Accessories
Lifting pole
Writing table
Oxygen cylinder holder
Simple orthopedic traction frame
Electrical foot controls
Stainless steel IV pole
Bed exit alarm
Why is HOPEFULL ICU bed equipped with weighing scale system?
Weighing ICU beds are a valuable tool used in hospitals to weigh bedridden patients. The risk increases if the patient is seriously ill and bedridden. Fluid fluctuations in patients can have adverse effects, such as dehydration, swelling, and associated pathology due to low homeostasis. Changes in body weight over a short period of time are the main indicators of fluid imbalance. Weighing beds can be used to determine trends in body weight, which may be clinically important. This helps monitor the weight of patients who are seriously ill or too unwell to sit or stand. For example, a patient with congestive heart failure who gains 3 or 4 pounds overnight may get worse and require a change in treatment. In this way, the weighing bed plays a great role in adjuvant therapy.
