Deluxe ICU Bed
This high-end ICU bed uses the innovative technologies to provide the best intensive healthcare for patients. Compliance with new international standards, solutions focus on the quality of care for patients.
Description

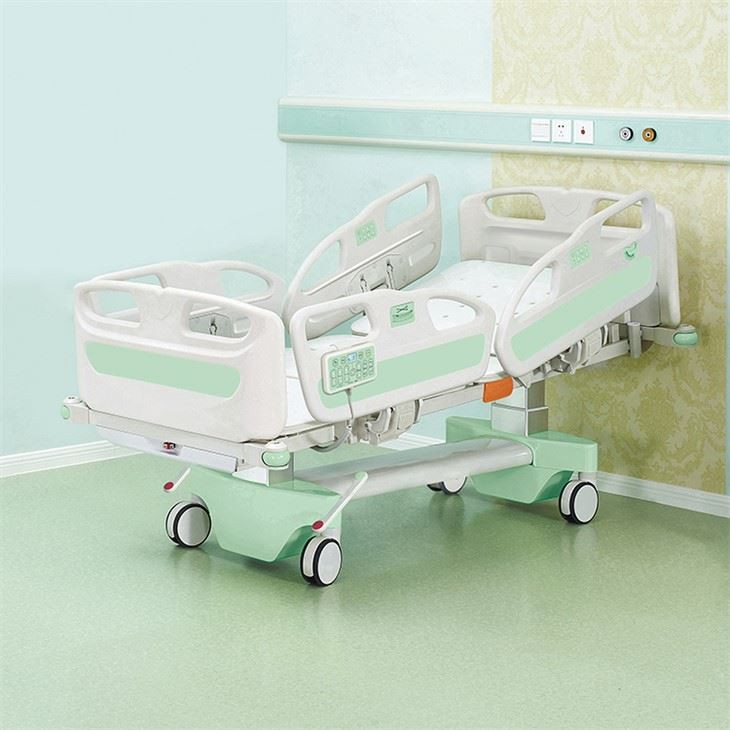

B988t Deluxe ICU Bed
This high-end ICU bed uses the innovative technologies to provide the best intensive healthcare for patients. Compliance with new international standards, solutions focus on the quality of care for patients.
Key Features
- Two rectangular columns lifting system
- Lateral tilting
- Radiolucent bed board for X-ray permissibility
- Heavy duty 6" twin wheel central locking castors
Standard Functions
- Back section up/down
- Knee section up/down
- Auto-contour
- Whole bed up/down
- Trendelenburg/Reverse Tren.
- Lateral tilting
- Full bedboard X-ray
- Auto-regression
- Manual quick release CPR
- Electric CPR
- One button cardiac chair position
- One button trendelenburg
- Angle display
- Backup battery
- Built-in patient control
- Under bed light
Technical Data
|
Mattress platform size |
(1970x850) ±10mm |
|
External size |
(2190x995) ±10mm |
|
Height range |
(520-840) ±10mm |
|
Back section angle |
0-70°±2° |
|
Knee section angle |
0-35°±2° |
|
Trendelenburg/Reverse Tren. angle |
0-13°±1° |
|
Lateral tilting angle |
0-31°±2° |
|
Castor diameter |
152mm |
|
Safe Working Load (SWL) |
250 kg |
The telescopic columns (LINAK rectangular column motors) ensure complete stability allowing height adjustment of the bed.

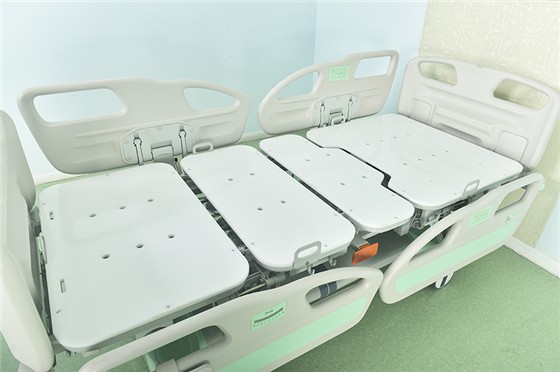

The fully translucent mattress platform allows full body X-rays to be taken without moving the patient.
Side rails are compliant to the IEC 60601-2-52 international hospital bed standard and aid patients who are able to egress the bed independently.
Backrest auto-regression extends pelvic area and avoids friction and shear force on the back, so as to prevent the formation of bedsores.
LCD nurse master control with real-time data display enables functional operations with ease.
Single-hand side rail release with soft drop function, side rails are supported with gas springs to lower the side rails at a reduced speed to ensure the patient comfortable and undisturbed.
Supports for IV pole, Oxygen cylinder holder and writing table are practically located at each corner of the bed making them easily accessible without causing an obstruction to the patient.
Outside: Intuitive and easily accessible, functional lock-out enhance the safety; Inside: Specially designed button of under bed light is convenient for patient to use at night.
It's conveniently placed at two sides of bed (middle). Dual side pull handle helps bringing the backrest to a flat position.
Self-designed 6" central locking castors, aircraft grade aluminum alloy frame, with self-lubricating bearing inside, enhance the safety and load bearing capacity, maintenance – free. The twin wheel castors provide smooth and optimal movement.
Lifting pole holders are on two sides of bed head.
Mattress retainers are designed at two sides and end of the mattress platform to prevent the mattress from shifting.
Convenient for patient illumination at night and medical staff observing patient's condition in dark.
Head and foot panel simple lock, make the head and foot board easily movable.
Optional Accessories
Lifting pole
Bed extension
Oxygen cylinder holder
Simple orthopedic traction frame
Electrical foot controls
Writing table
Stainless steel IV pole
HOPEFULL insists on selecting the best suppliers, most of whom are the industry leaders. Especially the motor, we choose the Global No.1 brand----- LINAK. Welcome to visit our factory!
