Intensive Care Unit Bed
Intensive Care Unit Bed is designed for its functions and abilities as much as it's for patient satisfaction.
Description

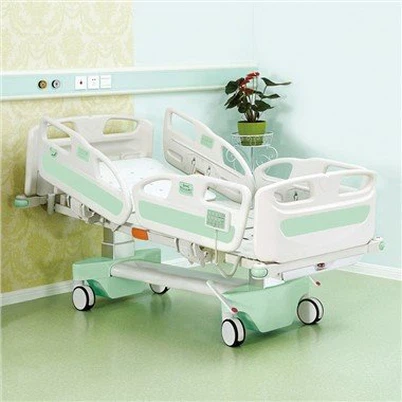

B868y Intensive Care Unit Bed
Intensive Care Unit Bed is designed for its functions and abilities as much as it's for patient satisfaction. The head and foot boards, side rails and mattress platform are designed with reduced gaps and spaces to prevent trapping of the patient in conformity with IEC 60601-2-52 standard for hospital beds.
Key Features
- Four motors
- Translucent backrest
- Central braking system
Standard Functions
- Back section up/down
- Knee section up/down
- Auto-contour
- Whole bed up/down
- Trendelenburg/Reverse Tren.
- Back section X-ray
- Auto-regression
- Manual quick release CPR
- Electric CPR
- One button cardiac chair position
- One button trendelenburg
- Angle display
- Backup battery
- Built-in patient control
- Under bed light
Technical Data
Mattress platform size | (1970x850) ±10mm |
External size | (2190x995) ±10mm |
Height range | (505-780) ±10mm |
Back section angle | 0-72°±2° |
Knee section angle | 0-36°±2° |
Trendelenburg/Reverse Tren. angle | 0-13°±1° |
Castor diameter | 125mm |
Safe Working Load (SWL) | 250 kg |

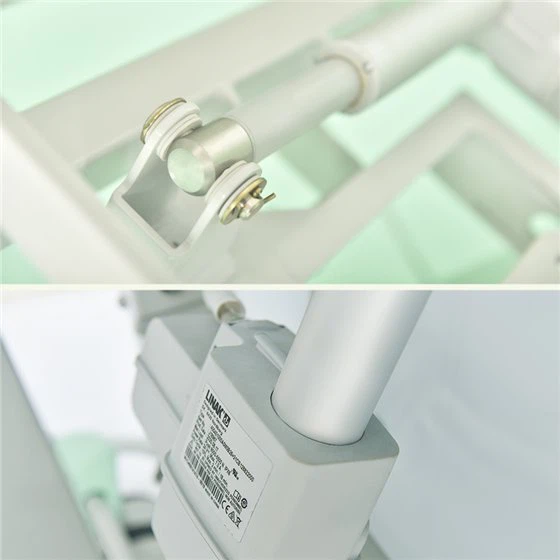

LINAK motor and control system ensure the stability and safety of the bed.

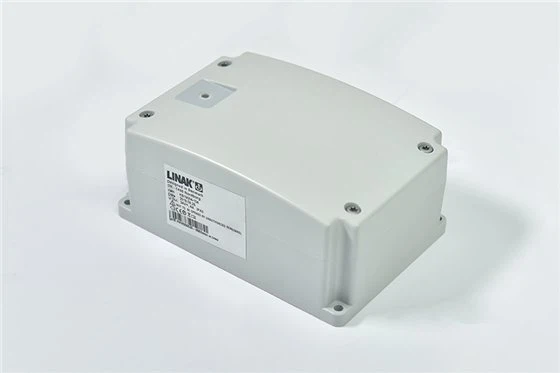

LINAK rechargeable backup battery, reliable quality, durable and stable characteristic.

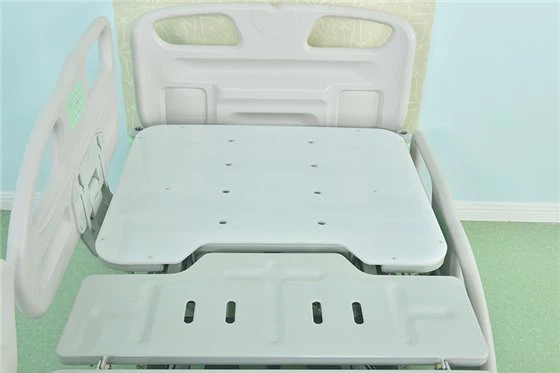

X-Ray translucent backrest allows chest and abdomen X-ray examination of the patient.

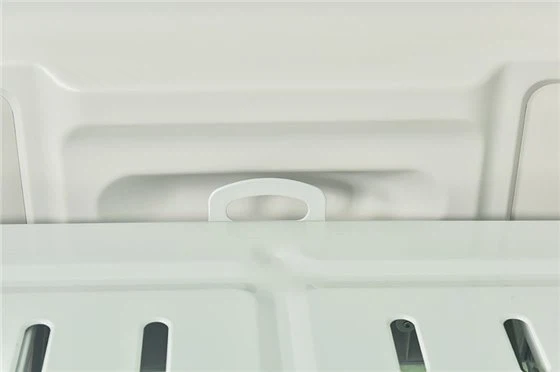

Mattress retainers help to secure the mattress and prevent it from sliding and shifting.

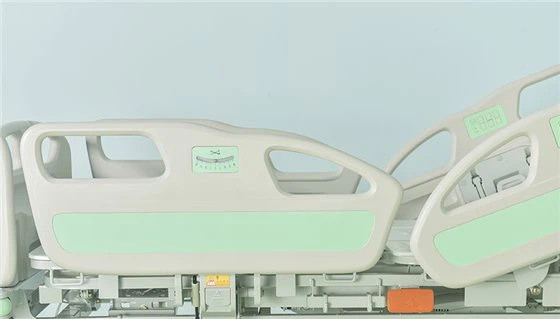

Side rails are compliant to the IEC 60601-2-52 international hospital bed standard and aid patients who are able to egress the bed independently.

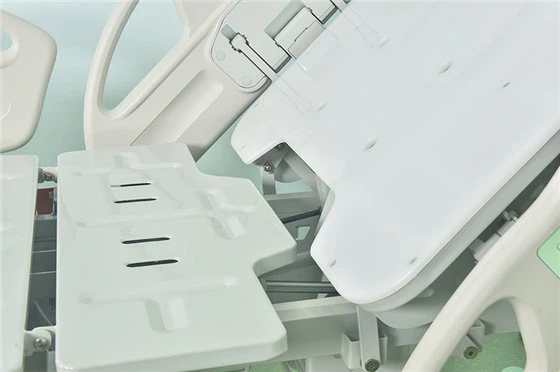

Backrest auto-regression extends pelvic area and avoids friction and shear force on the back, so as to prevent the formation of bedsores.

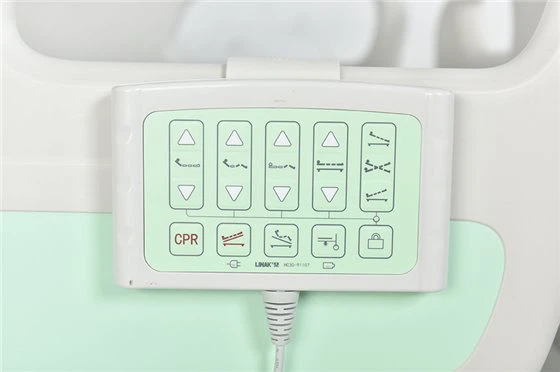

LINAK nurse master controller enables functional operations with ease and with lockout button.
Single-hand side rail release with soft drop function, side rails are supported with gas springs to lower the side rails at a reduced speed to ensure the patient comfortable and undisturbed.
Supports for IV pole, Oxygen cylinder holder and writing table are practically located at each corner of the bed making them easily accessible without causing an obstruction to the patient.
Outside: Intuitive and easily accessible, functional lock-out enhance the safety;
Inside: Specially designed button of under bed light is convenient for patient to use at night.
It's conveniently placed at two sides of bed (middle). Dual side pull handle helps bringing the backrest to a flat position.
Lifting pole holders are attached to the corner of bed head to provide support for lifting pole (optional).
The under bed light makes it easier for patients to find their way at night in the dark to prevent falling accidents and improve care.
Ø125mm twin wheel castors with strong bearing force ensure the safe loading of the whole bed. Stainless steel central braking pedal, never rust, one step to lock and release four castors.
Optional Accessories
Lifting pole
Bed extension
Oxygen cylinder holder
Simple orthopedic traction frame
Integrated hook
Writing table
Stainless steel IV pole
In China hospital bed industry, HOPEFULL is the only enterprise that can complete whole production process, including mould manufacturing, plastic parts manufacturing, small parts manufacturing, hardware machining, welding, spray coating and final assembly.
