Pediatric ICU Bed with Weighing Scale
This pediatric bed is designed for patient children who need intensive care. The bed features transparent side rails and head/foot board to ensure the safety of the patient.
Description

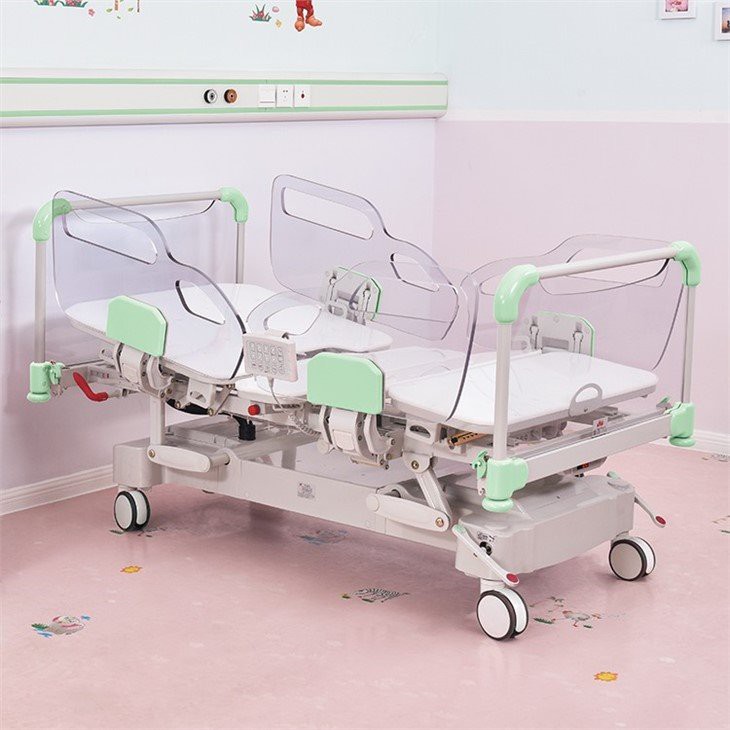

Ch838a-ch Pediatric ICU Bed with Weighing Scale
This pediatric bed is designed for patient children who need intensive care. The bed features transparent side rails and head/foot board to ensure the safety of the patient. It is convenient for nursing staff to observe children's condition through the transparent guardrails at any time.
Key Features
- Weighing scale system
- Four motors
- Transparent side rails and head/foot board
- Radiolucent bed board for X-ray permissibility
- Central braking system
Standard Functions
- Back section up/down
- Knee section up/down
- Auto-contour
- Whole bed up/down
- Trendelenburg/Reverse Tren.
- Weighing scale
- Auto-regression
- Manual quick release CPR
- Electric CPR
- One button cardiac chair position
- Full bedboard X-ray
- One button trendelenburg
- Backup battery
- Under bed light
Option
- IV pole
- Integrated hook
- Bed exit alarm
Technical Data
Mattress platform size | (1720x850) ±10mm |
External size | (1875x980) ±10mm |
Height range | (500-750) ±10mm |
Back section angle | 0-71°±2° |
Knee section angle | 0-36°±2° |
Trendelenburg/Reverse Tren. angle | 0-13°±1° |
Castor diameter | 125mm |
Safe Working Load (SWL) | 250 kg |
LINAK motor and control system ensure the stability and safety of the bed.
The fully translucent mattress platform allows full body X-rays to be taken without moving the patient.
Side rails are purposely designed to be transparent so as to enable nursing staff to observe child's condition conveniently, and head & foot board are also designed in this way. They comply with the IEC 60601-2-52 international hospital bed standard.
Backrest auto-regression extends pelvic area and avoids friction and shear force on the back, so as to prevent the formation of bedsores.
Patients can be weighed through a weighing system which can also be set exit alarm (optional function).
LINAK nurse master controller enables functional operations with ease and with lockout button.
Single-hand side rail release with soft drop function, side rails are supported with gas springs to lower the side rails at a reduced speed to ensure the patient comfortable and undisturbed.

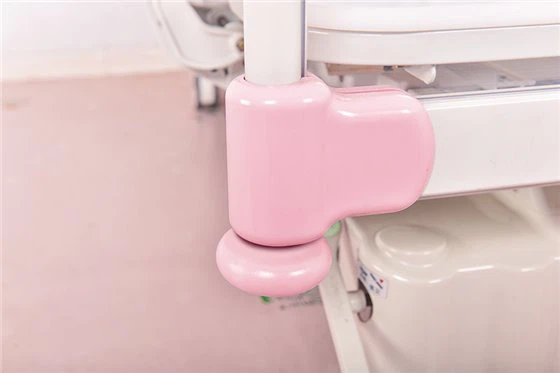

Protective plastic wheel bumpers on each corner minimize the damage in case of hitting the wall.
It's conveniently placed at two sides of bed (middle). Dual side pull handle helps bringing the backrest to a flat position.
Self-designed 5" central locking castors, aircraft grade aluminum alloy frame, with self-lubricating bearing inside, enhance the safety and load bearing capacity, maintenance – free. The twin wheel castors provide smooth and optimal movement.
Simple bed ends lock makes the head and foot board easily movable and secure the safety.
FAQ
Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer and specialized in hospital beds with more than 20 years history.
Q: What kind of certificate do you have?
A: We have CE, FDA, GOST-R, ROSH, FSC, ISO9001, ISO13485, and ISO14001 etc.
Q: What's the delivery time?
A: Our standard delivery time is 35 days, even if the quantity reaches thousands.
Q: How's the warranty?
A: 2 years warranty. We provide spare parts free of charge during the warranty period. Technical support is free for whole life time.
Q: How many years can spare parts be available?
A: At least 10 years. Because we process all spare parts in our own factory and all needed plastic molds and hardware molds are designed and produced by ourselves.
Q: Which brand of motor do you use for your electric beds?
A: We only use LINAK. As we know, the motor is the most important part for an electric bed; LINAK is recognized for its good quality, high safety and strong stability.
Q: What's the MOQ?
A: One 20 feet container. One container with mixed models is also acceptable.
Q: How can I see your products or visit your factory?
A: You can come to our factory or visit our booth in medical fairs. Our factory is in Xianning, Hubei, just 2 hours driving from Wuhan, 4 hours of high-speed train from Guangzhou/Shenzhen, and 6 hours of high-speed train from Shanghai.
