Two Function Manual Bed
The Two Function Manual Bed is a basic manual fowler hospital bed. The fowler bed with mechanically features smooth foldable manual crank handles at the foot end of the bed to provide backrest and knee rest.
Description

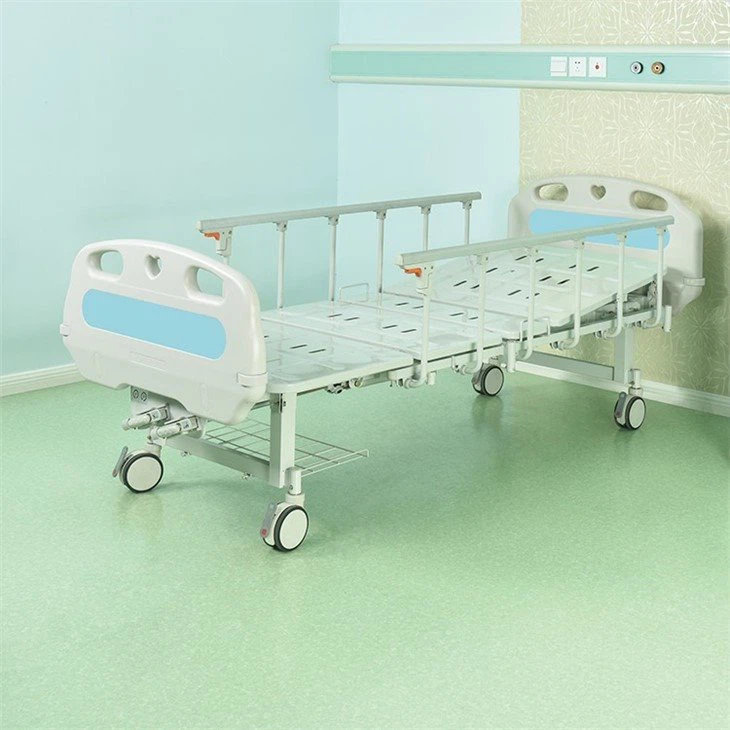

D356a Two Function Manual Bed
The Two Function Manual Bed is a basic manual fowler hospital bed. The fowler bed with mechanically features smooth foldable manual crank handles at the foot end of the bed to provide backrest and knee rest. The bed has two classic functions, the back section can be raised 72 degrees, and the knee section can be raised 45 degrees.
Key Features
- Two sets of super-smooth crank mechanism
- 5' double wheel castor with individual brakes
- Aluminum alloy collapsible bending tube guard rails
Standard Functions
- Back section up/down
- Knee section up/down
Technical Data
Mattress platform size | (1920x850) ±10mm |
External size | (2175x980) ±10mm |
Fixed height | 500 ±10mm |
Back section angle | 0-72°±2° |
Knee section angle | 0-45°±2° |
Castor diameter | 125mm |
Safe Working Load (SWL) | 250 kg |
4-section heavy duty one-time stamped steel mattress platform with electrophoresis and powder coated, designed with ventilating holes and anti-skid grooves, smooth and seamless four corners.
Collapsible aluminum alloy bedside rails provide protection, adopt the bending aluminum tube, painted treatment make it never rust; the bottom mounting part design down which can avoid the dirt storage and make cleaning easily, easy movable, simple and safe locking, designed with anti-pinch function.
Bedside rail switch base is chosen as the aircraft grade aluminum alloy to ensure its strong and durable, double coating painted treatment to make it never rust; easily recognized orange safe lock, simple operation.
The crank handle using humanized design, elliptic shape with grooves ensure the perfect hand feeling; ABS injection molding with quality steel bar inside to make it more durable and difficult to be broken.
"Double direction to the position and no ultimate" screw system, equipped with seamless steel tube totally enclosed structure and special "copper nut" inside to make sure it is silent, durable, so as to extend bed's using life.
Bumper is designed in two sides of the head/foot panel to provide protection from hitting.
Double-face castor with simple individual brake, inside there is self-lubricating bearing can make the castor turning flexibly, and the surface of the castor is adopted as high polymer material can ensure the quiet moving.
Head and foot panel simple lock make the head/foot panel extremely firm and easily removable.
Optional Accessories
Stainless steel IV pole
Simple orthopedic traction frame
