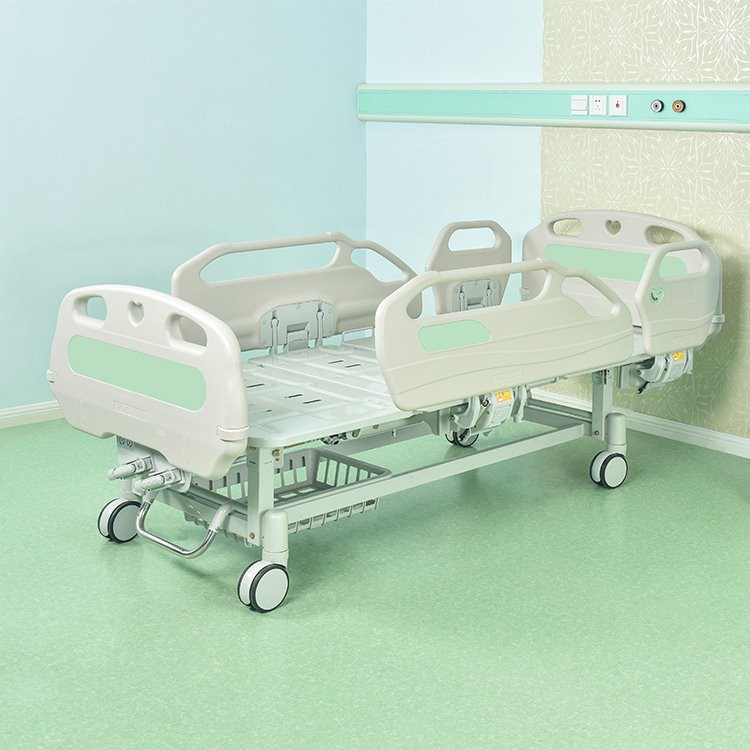

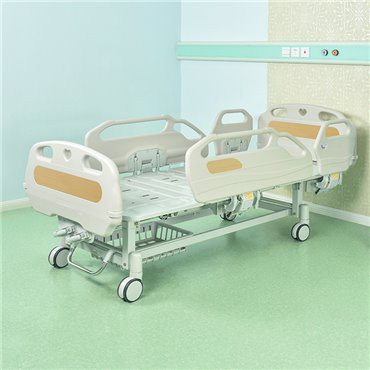

Two Crank Hospital Bed
The Two Crank Hospital Bed needs the nursing staff to realize the activities of patients' backrest and knee rest by adjusting the hand cranks, which is also more economical and practical.
Description
B368a Two Crank Hospital Bed
The Two Crank Hospital Bed needs the nursing staff to realize the activities of patients' backrest and knee rest by adjusting the hand cranks, which is also more economical and practical. This model features ABS engineering plastic guardrail, ergonomic design, fashionable and beautiful appearance, easy operation and easy cleaning.
Key Features
- Two sets manual crank system
- Central braking system with stainless steel pedal at the bed end
- 3/4 type split side rails
- Backrest with auto-regression
Standard Functions
- Back section up/down
- Knee section up/down
- Whole bed up/down
- Auto-regression
- Angle display
Technical Data
Mattress platform size | (1920x850) ±10mm |
External size | (2175x990) ±10mm |
Fixed height | 500±10mm |
Back section angle | 0-72°±2° |
Knee section angle | 0-45°±2° |
Castor diameter | 125mm |
Safe Working Load (SWL) | 250 kg |

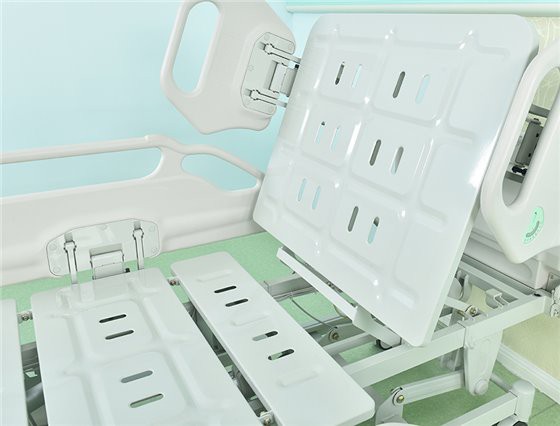

4-section heavy duty one-time stamped steel mattress platform with electrophoresis and powder coated, designed with ventilating holes and anti-skid grooves. Backrest auto-regression extends pelvic area and avoids friction and shear force on the back.
Blow molding designed, with independent head section; ensure patient safety while allowing access.
Angle displays are built in the dual side rail of the back board. It's very convenient to locate the angles of backrest.
Mattress retainers help to secure the mattress and prevent it from sliding and shifting.

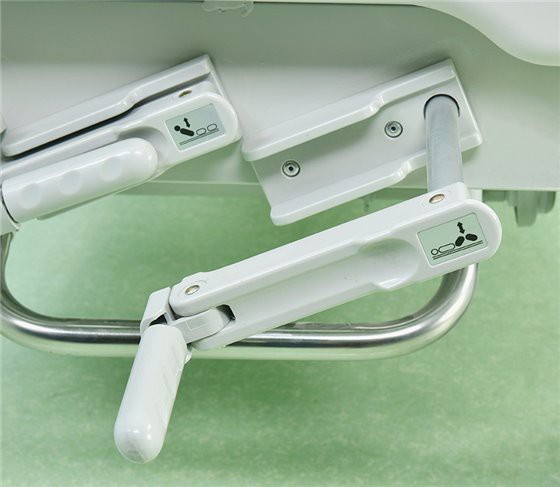

The crank handle using humanized design, elliptic shape with grooves ensure the perfect hand feeling; ABS injection molding with quality steel bar inside to make it more durable and difficult to be broken.
Split side rail is released with soft drop function supported by gas springs, rapid self-lowering mechanism allowing for quick access to patients.
"Double direction to the position and no ultimate" screw system, equipped with seamless steel tube totally enclosed structure and special "copper nut" inside to make sure it is silent, durable, so as to extend bed's using life.
Bumpers are designed in two sides of the head/foot panel to provide protection from hitting.
Head and foot panel simple lock make the head/foot panel extremely firm and easily removable.
Stainless steel central braking pedal is located at the bed end. Ø125mm twin wheel castors with self-lubricating bearing inside, enhance the safety and load bearing capacity, maintenance - free.
Optional Accessories
Stainless steel IV pole
Simple orthopedic traction frame
HOPEFULL Spraying Equipment and Technology
Large automatic immersion electrophoresis and electrostatic powder spraying equipment, with a length of 520M and 33 processes, is the largest, most advanced and environment-friendly spraying equipment in Chinese hospital bed industry. The equipment adopts chassis electrophoresis technology and electrostatic powder spraying technology, the workpiece is protected by double coating. The first layer is polymer Nippon painting and the second layer is powder coating, realizing internal and external rust prevention and anti-rust capability is greatly improved by 200%, ensuring 15 years rust-proof life of the workpiece.
