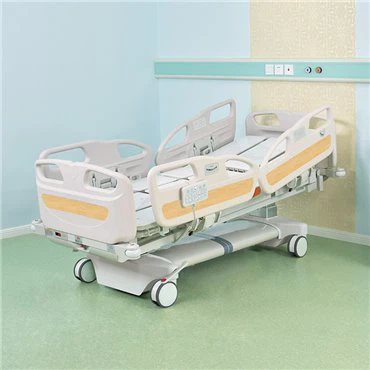

Lateral Tilting ICU Bed with Weight Scale
This bed allows caregivers to turn patients easily and helps clean patients to relieve bedsores caused by long periods of immobility.
Description
F968y-ch Lateral Tilting ICU bed with Weight Scale
This bed allows caregivers to turn patients easily and helps clean patients to relieve bedsores caused by long periods of immobility. It also has an electronic scale that can weigh patients accurately no matter what position they're in or where they're on the bed.
Key Features
- In-bed weighing scale
- Two rectangular columns lifting system
- Part bedboard left/right lateral tilting
- 12-section mattress platform
- Heavy duty 6" twin wheel central locking castors
Standard Functions
- Back section up/down
- Knee section up/down
- Auto-contour
- Whole bed up/down
- Trendelenburg/Reverse Tren.
- Part bedboard lateral tilting
- Weighing scale
- Auto-regression
- Manual quick release CPR
- Electric CPR
- One button cardiac chair position
- One button trendelenburg
- Angle display
- Backup battery
- Built-in patient control
- Under bed light
Technical Data
Mattress platform size | (1960x850) ±10mm |
External size | (2190x995) ±10mm |
Height range | (530-850) ±10mm |
Back section angle | 0-70°±2° |
Knee section angle | 0-36°±2° |
Trendelenburg/Reverse Tren. angle | 0-13°±1° |
Lateral tilting angle | 0-31°±2° |
Castor diameter | 152mm |
Safe Working Load (SWL) | 250 kg |
The telescopic columns (LINAK rectangular column motors) ensure complete stability allowing height adjustment of the bed.
Patients can be weighed through a weighing system which can also be set exit alarm (optional function).

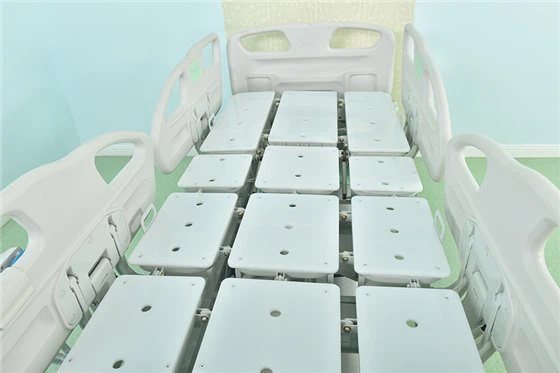

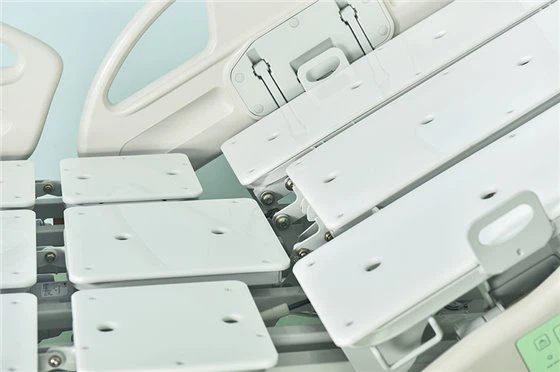

12-section PP mattress platform, designed for part bedboard left/right lateral tilting (turn over function); carved by the high grade precise engraving machine; with ventilating holes, curved corners and smooth surface, look perfect and easy clean.
Side rails are compliant to the IEC 60601-2-52 international hospital bed standard and aid patients who are able to egress the bed independently.
Backrest auto-regression extends pelvic area and avoids friction and shear force on the back, so as to prevent the formation of bedsores.
LCD nurse master control with real-time data display enables functional operations with ease.
Single-hand side rail release with soft drop function, side rails are supported with gas springs to lower the side rails at a reduced speed to ensure the patient comfortable and undisturbed.
Four bumpers provide protection, with IV pole socket in the middle, also used to hang Oxygen cylinder holder and hold writing table.

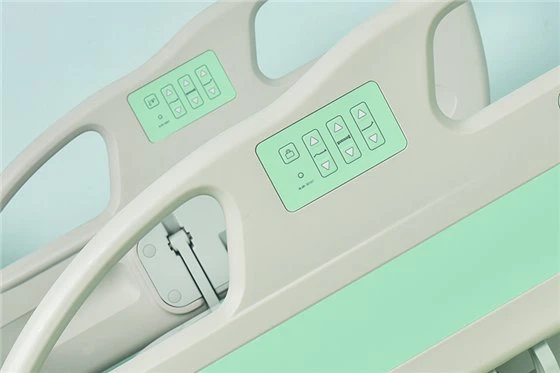

Outside: Intuitive and easily accessible, functional lock-out enhance the safety;
Inside: Specially designed button of under bed light is convenient for patient to use at night.
It's conveniently placed at two sides of bed (middle). Dual side pull handle helps bringing the backrest to a flat position.
Self-designed 6' central locking castors, aircraft grade aluminum alloy frame, with self-lubricating bearing inside, enhance the safety and load bearing capacity, maintenance – free. The twin wheel castors provide smooth and optimal movement.
LINAK rechargeable backup battery, reliable quality, durable and stable characteristic.
Mattress retainers help to secure the mattress and prevent it from sliding and shifting.
The under bed light makes it easier for patients to find their way at night in the dark to prevent falling accidents and improve care.
Simple bed ends lock make the head and foot board easily movable and secure the safety.
Lifting pole holders are attached to the corner of bed head to provide support for lifting pole (optional).
Optional Accessories
Lifting pole
Writing table
Oxygen cylinder holder
Simple orthopedic traction frame
Electrical foot controls
Stainless steel IV pole
Bed exit alarm
How does HOPEFULL ensure the product quality?
1. We have our own quality principle "99+1=0": If product has 1% defect, means Zero (unqualified).
2. Our beds are designed to meet the IEC 60601-2-52 international hospital bed standard.
3. We're the first to obtain the title of Chinese Well-known Trademark in China. And also have certificates such as USFDA, CE (EU-MDR), ISO9001, ISO13485, ISO14001 and GOST-R etc.
4. All electric bed is installed Denmark LINAK motor to ensure the safety and durability.
5. All parts and finished products are tested according to 15 years using time.
6. We set up a large molding center very early. It is the first domestic enterprise to realize the production from mold manufacturing to finished products.
7. What's more, innovation is our tradition. On the way of innovation, we have made continuous breakthroughs and obtained more than 170 patents.
Our Patent Wall
