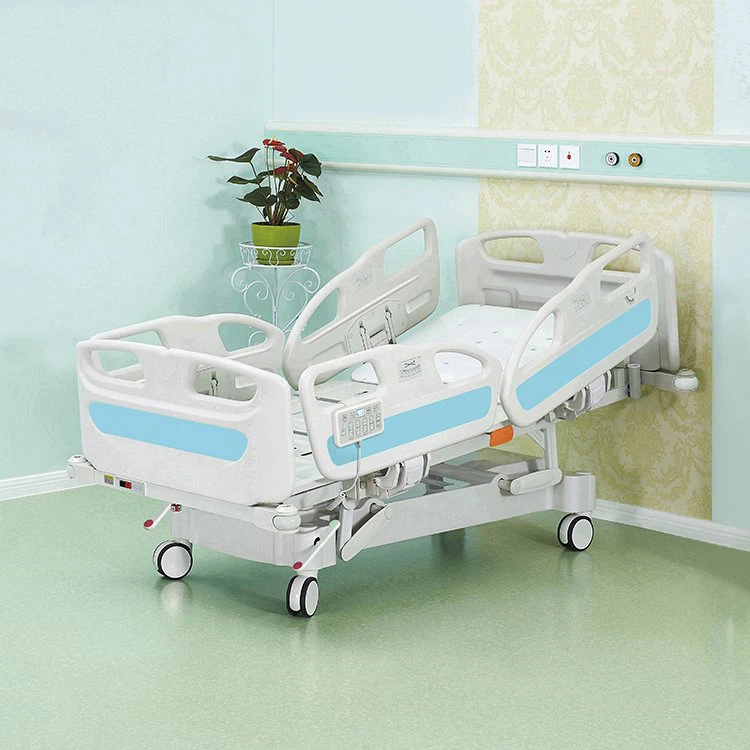

ICU Bed with Weighing System
This ICU bed is designed to be suitable for a wide range of patients. It helps provide more meaningful and intimate care to patients with its ergonomic and robust design.
Description
Ba868y-ch ICU bed with weighing system
This ICU bed is designed to be suitable for a wide range of patients. It helps provide more meaningful and intimate care to patients with its ergonomic and robust design. To enhance the patient comfort and ease the working of nursing staff, the bed is integrated with backrest X-ray and weighing scale function.
Key Features
- In-bed weighing scale
- Four motor
- Translucent backrest
- Central braking system
Standard Functions
- Back section up/down
- Knee section up/down
- Auto-contour
- Whole bed up/down
- Trendelenburg/Reverse Tren.
- Back section X-ray
- Weighing scale
- Auto-regression
- Manual quick release CPR
- Electric CPR
- One button cardiac chair position
- One button trendelenburg
- Angle display
- Backup battery
- Built-in patient control
- Under bed light
Technical Data
Mattress platform size | (1970x850) ±10mm |
External size | (2190x995) ±10mm |
Height range | (500-740) ±10mm |
Back section angle | 0-70°±2° |
Knee section angle | 0-33°±2° |
Trendelenburg/Reverse Tren. angle | 0-13°±1° |
Castor diameter | 125mm |
Safe Working Load (SWL) | 250kg |
LINAK motor and control system ensure the stability and safety of the bed.
X-Ray translucent backrest allows chest and abdomen X-ray examination of the patient.
Patients can be weighed through a weighing system which can also be set exit alarm (optional function).
Side rails are compliant to the IEC 60601-2-52 international hospital bed standard and aid patients who are able to egress the bed independently.
Backrest auto-regression extends pelvic area and avoids friction and shear force on the back, so as to prevent the formation of bedsores.
LCD nurse master control with real-time data display enables functional operations with ease.
Single-hand side rail release with soft drop function, side rails are supported with gas springs to lower the side rails at a reduced speed to ensure the patient comfortable and undisturbed.
Four bumpers provide protection, with IV pole socket in the middle, also used to hang Oxygen cylinder holder and hold writing table.
Outside: Intuitive and easily accessible, functional lock-out enhances the safety; Inside: Specially designed button of under bed light is convenient for patient to use at night.
It's conveniently placed at two sides of bed (middle). Dual side pull handle helps bringing the backrest to a flat position.
Self-designed 5" central locking castors, aircraft grade aluminum alloy frame, with self-lubricating bearing inside, enhance the safety and load bearing capacity, maintenance – free. The twin wheel castors provide smooth and optimal movement.
LINAK rechargeable backup battery, reliable quality, durable and stable characteristic.
Mattress retainers help to secure the mattress and prevent it from sliding and shifting.
Lifting pole holders are attached to the corner of bed head to provide support for lifting pole (optional).
Simple bed ends lock makes the head and foot board easily movable and secure the safety.
Optional Accessories
Lifting pole
Bed extension
Oxygen cylinder holder
Simple orthopedic traction frame
Integrated hook
Writing table
Stainless steel IV pole
Bed exit alarm
By the end of January 2017, HOPEFULL has exported 7,261 sets of electric beds, including 220 weighing beds, to Ecuador in the project with SINOPHARM, both of which set the export record of electric beds and weighing beds in China.
