Electric Adjustable Hospital Bed
With patient safety in mind, combined with split side rails to help prevent the risk of falls, the K738a electric adjustable hospital bed is designed to meet the highest standards of safety and reliability at the highest cost performance and to meet the increasingly demands of a modern hospital environment.
Description

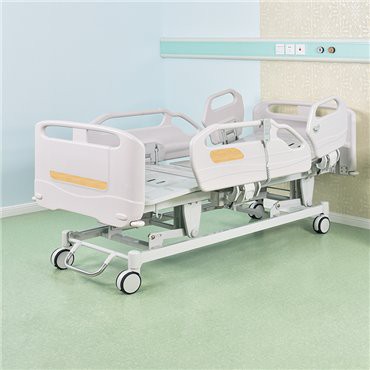

K738a Electric Adjustable Hospital Bed
With patient safety in mind, combined with split side rails to help prevent the risk of falls, the K738a electric adjustable hospital bed is designed to meet the highest standards of safety and reliability at the highest cost performance and to meet the increasingly demands of a modern hospital environment. This model is ideal for use in general wards with high quality requirements.
Key Features
- Three linear motors
- Central braking system with stainless steel pedal at the bed end
- Manual operation combined with remote control to reach the special function of Trendelenburg
- 3/4 type split side rails
- Backup battery is available as standard.
Standard Functions
- Back section up/down
- Knee section up/down
- Auto-contour
- Whole bed up/down
- Trendelenburg
- Auto-regression
- Angle display
- Backup battery
Technical Data
Mattress platform size | (1920x850) ±10mm |
External size | (2165x990) ±10mm |
Height range | (520-800) ±10mm |
Back section angle | 0-70°±2° |
Knee section angle | 0-28°±2° |
Trendelenburg/Reverse Tren. angle | 0-13°±1° |
Castor diameter | 125mm |
Safe Working Load (SWL) | 250 kg |
Denmark LINAK motors create smooth movement in hospital beds and ensure the safety and quality of all HOPE-FULL electric beds.
4-section heavy duty one-time stamped steel mattress platform with electrophoresis and powder coated, designed with ventilating holes and anti-skid grooves. Backrest auto-regression extends pelvic area and helps redistribute pressure and relieves a squeeze on the abdomen.
Mattress retainers help to secure the mattress and prevent it from sliding and shifting.
Blow molding designed, with independent head section; ensure patient safety while allowing access.
Angle displays are built in the dual side rail of the back board. It's very convenient to locate the angles of backrest.
Handset with intuitive iconography enables functional operations with ease.
Split side rail is released with soft drop function supported by gas springs, rapid self-lowering mechanism allowing for quick access to patients.
Protective plastic wheel bumpers on each corner minimize the damage in case of hitting the wall.
LINAK rechargeable backup battery, reliable quality, durable and stable characteristic.
Simple bed ends lock makes the head and foot board easily movable and secure the safety.
Stainless steel central braking pedal is located at the bed end. Ø125mm twin wheel castors with self-lubricating bearing inside, enhance the safety and load bearing capacity, maintenance - free.
Optional Accessories
Lifting pole
Integrated hook
Stainless steel IV pole
Simple orthopedic traction frame
We attach great importance to the selection of suppliers. In order to ensure product quality, we choose brand suppliers, especially motors. As we all know, motor and control system is the core technology of electric bed. HOPEFULL electric bed adopts Danish LINAK motor, which is very stable and reliable in quality. In addition, the control system is jointly developed by HOPEFULL and LINAK, which is very close to the needs of users and can quickly respond to the demands of customers. HOPEFULL cooperates closely with LINAK. The two sides sign a strategic cooperation agreement to jointly develop and innovate, so as to effectively meet the various needs of customers.
